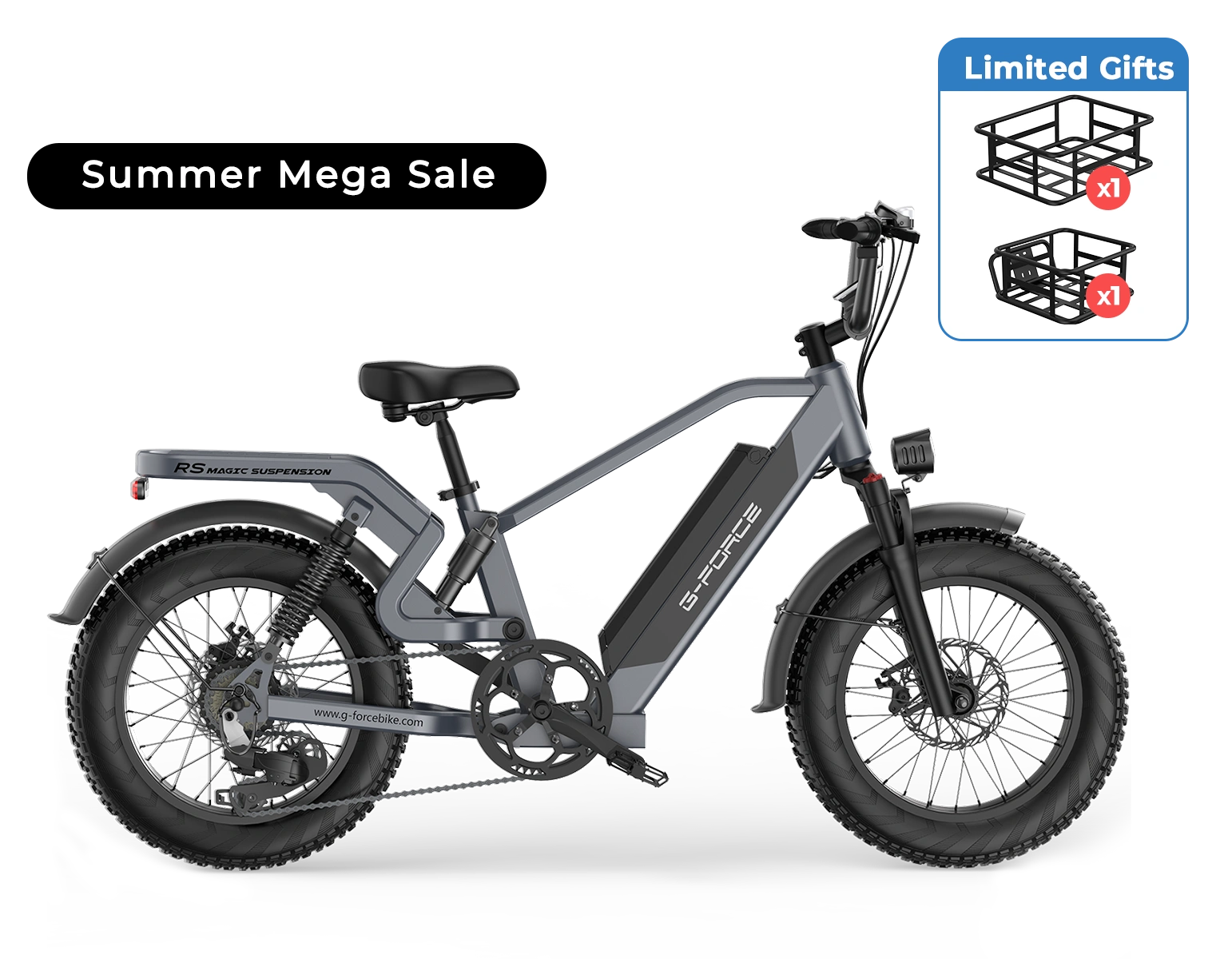

G-FORCE RS
The New R Series Flagship Premium All-terrain Fat Tire Electric Bike
You save
Christmas Discount Updated
Extra-$100 OFF
MC100
Copy Code
Code to use at checkout
- Magic Suspension: Magic Suspension is an upgraded version of the full suspension system. The magic suspension system pioneered by G-FORCE consists of two adjustable front fork shocks and four frame link shocks. Six shock absorbers with 90% bumps reduced, allowing for a smooth and comfortable ride
- Long Range: Delivering a cruising range of up to 60-100 miles on a full charge, RS assures robust and consistent power output. Experience worry-free journeys with seamless power performance.
- Powerful Motor: A 750W rear hub motor (1300W Peak) with 85Nm of torque delivers power and speed quicker than ever before to help you easily conquer rough terrains.
- Brakes: Hydraulic mineral oil brakes and 180mm rotors (with a thickness of up to 2.3mm)provide ultimate braking power, ensuring your safety whether you're engaging in it.
- Rain or shine: No more rainchecks. With industry-leading lP-65-rated electrical components ensuring greater water and dust resistance., the RS is your go-to rainy-day companion.
1 Year Warranty
14-Day Returns
Free Shipping & No Tax
Model
RS
(High-Step)
RS-ST
(Step-Thru)
Ask a question
G-FORCE RS
G-FORCE RS
Battery anti-theft lock
Battery Button
Discover RS
48V LED Ultra Bright Headlight
When riding in low-visibility conditions at night, you can also turn on the integrated LED headlight to further illuminate the road.
Integrated Taillight with Brake Lights
Experience ultimate safety and convenience with its integrated taillight with brake lights. Ride with peace of mind, even in the dark.
Pedals
Maximize your riding experience with our aluminum alloy pedals, equipped with dual reflective strips for added safety.
Half Twist Throttle
Compared to the handlebar throttle, the half twist throttle design is more ergonomic, offering a natural and comfortable operation that reduces hand fatigue and discomfort, thus enhancing safety and comfort during rides.
Extra Comfortable Seat
Crafted with an ergonomic design, our seat ensures optimal support and comfort for every ride. Plus, stay safe with the built-in rear reflective strip, enhancing visibility in low-light conditions.
20"x4" Fat Tires
Two fat tires provide unparalleled traction. Say goodbye to skidding and slipping; Embrace a smooth and comfortable journey.
Rear Derailleur Guard
Provide effective protection for rear derailleur, prevent the derailleur was struck distortion or displacement in riding.
You May Recognize It
Specification
-
What's In The Box
RS * 1
Keys * 1
Charger * 1Toolkit Box * 1
Rear Derailleur Guard * 1
-
Semi-Integrated Battery
A removable 48V 15.6Ah /48V 25Ah lithium-ion battery complies with UL2849 testing and is integrated into the down tube of the frame, making for a clean and easily accessible design.
-
Pedal-Assist
Five levels of pedal assist and an ergonomic Half Twist Throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.
-
20"x4" Fat Tires
Two fat tires provide unparalleled traction and can handle any terrain with ease. Say goodbye to skidding and slipping; Embrace a smooth and comfortable journey.
-
Motor
A 750W rear hub motor (1300W Peak) with 85Nm of torque delivers power and speed quicker than ever before to help you conquer rough terrains with ease.
-
Half Twist Throttle
Compared to the handlebar throttle, the half twist throttle design is more ergonomic, offering a natural and comfortable operation that reduces hand fatigue and discomfort, thus enhancing safety and comfort during rides.
-
Motor Controller
A 22 amp controller swiftly distributes power to the motor.
-
PAS Sensor
G-FORCE's new PAS Sensor enables the rider to control the eBike's power output effortlessly, eliminating the need for a torque sensor to achieve a smooth riding experience. Instead, the RS model features a straightforward and cost-effective cadence sensor to ensure seamless rides.
-
Magic Suspension
Magic Suspension is an upgraded version of the full suspension system. The magic suspension system pioneered by G-FORCE consists of an adjustable front fork(up to 80mm of travel ), and a Rear Suspension system. Magic Suspension with six shock absorbers and 90% bumps reduced, allowing for a smooth and comfortable ride.
-
Rear Suspension system
Engineers meticulously craft the Rear Suspension system which consists of four frame link shocks(including two middle shocks and two rear wheel spring shock absorbers)—high-quality frame link suspension construction that greatly reduces bumps on uneven surfaces.
-
Adjustable front Fork
The adjustable front fork boasts a high-strength aluminum alloy Dual Suspension(with up to 80mm of travel ) & Hydraulic Lockout which ensures the comfort of riding under any complex cycling conditions.
-
Drivetrain
14-28 tooth, 7-geared freewheel paired with a Shimano derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
-
Brakes
hydraulic mineral oil brakes and 180mm rotors (with a thickness of up to 2.3mm)provide ultimate braking power, ensuring your safety whether you're engaging in it.
-
LCD Display
A backlit, heads-up LCD display provides trip and battery intelligence on the go. lP-65-rated electrical components ensure greater water and dust resistance.
-
Crankset
Forged aluminum, 48-tooth chainring with dual-sided chainring guard is the perfect match for 20-inch fat tires.
-
Chain
The RS's KMC Z8 steel chain offers consistent tension and secure performance throughout your ride.
-
Safety Lights
An integrated safety system, featuring a headlamp and taillight powered by the battery allows you to be seen at any time of day.
-
Telescoping Seat Post
An adjustable and removable seat post allows riders to reach a range of heights while maintaining comfort and stability.
-
Charging
48V,3.0A, operates on 100V-240V AC power outlets, 5-8 hr charging. A charging port on the bottom of the integrated battery provides riders with the option to charge the eBike without removing the battery. Meanwhile, interchangeable spare batteries can be removed and installed in seconds, doubling your range.
-
Thru Axle
The front wheel features a Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability. Remove the wheel in minutes for easy and light-weight transport
-
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
-
Grips
Soft ergonomic imitation leather comfort grips offer superior comfort, durability, grip, and style, making them a popular choice among cyclists.
-
Saddle
260*230mm, comfortable ergonomic seat, allowing you to ride for longer periods equipped with a rear reflector, significantly improving safety.
-
TitleKickstand
A heavy-duty side-sweeping kickstand located near the chain stay keeps the E-Bike upright.
-
Hidden Cable Routing
The down tube of the frame houses the main cables for a premium experience at no extra cost.
-
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals and install the front wheel via the thru-axle.
-
Frame
The RS uses high-quality 6061 aluminum for the frame to give the bike unparalleled durability and strength, our bicycle frames have undergone rigorous testing, which has passed over 300,000 vibration tests. The RS is available in 2 different frame styles, a diamond High-Step and an easy-on Step-Thru.
-
Weight
15Ah RS Net Weight: 36.5 kg / 80.5 lbs.
15Ah RS Gross Weight: 43.4 kg / 95.7 lbs.
25Ah RS Net Weight: 37.4 kg / 82.5 lbs.
25Ah RS Gross Weight: 44.3 kg / 97.7 lbs. -
Dimensions
RS Dimensions：70.5*42.1*26 inch
Box Dimensions：57.5*30.3*12.2 inch
- A -- Total Length70.5"
- B -- Handlebar Height42.1"
- C -- Minimum Seat Height30.7"
- D -- Maximum Seat Height36.6"
- E -- Stand Height31.1"
- F -- Top Tube Length22.4"
- G -- Wheelbase46.1"
- H -- Chain Stay Length19.7"
- I -- Wheel Diameter22.8"
- J -- Distance from the seat to the handlebar28.3"
- K -- Length of the Handlebar26"
